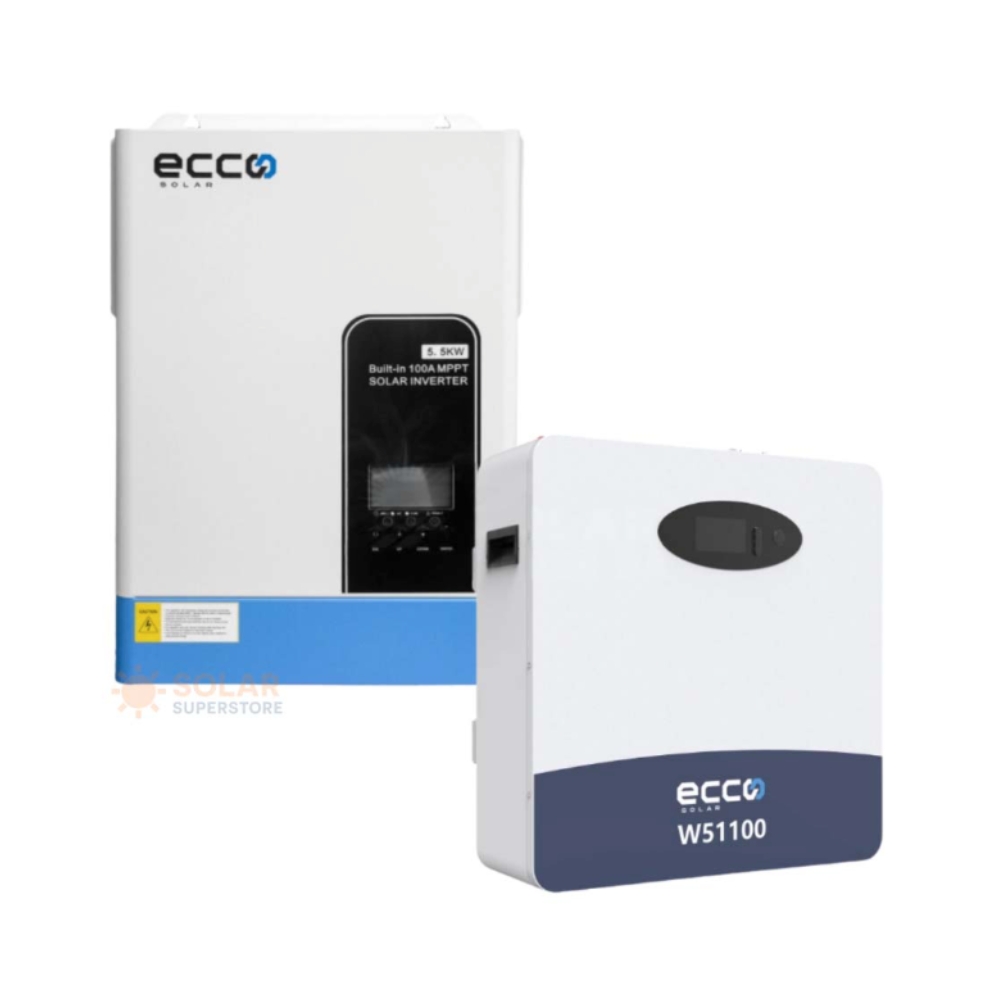

Ecco 5.5 KVA Pure Sine Wave Load Shedding 5.12 kWh Wall Mount Lithium Battery Combo

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

High Voltage VDC500V
5.5KVA/5500W 100A Pure Sine Wave Solar Inverter

Features

• Pure sine wave
• Power factor 1.0
• PV input Voltage 60Vdc-500Vdc
• Built-in MPPT 100A
• Capable to work without battery
• RS485 BMS Communication
• Lithium battery activation
• Detachable dust cover for harsh environment
• WiFi remote monitoring optional
• Support multiple output priority: UTL, SOL, SBU, SUB
• EQ function to optimize battery performance and extend lifecycle
• Parallel Version

Specifications:

What’s in the box:

Battery

Battery Cables & Mounts Included

Battery Parameters:

Battery Type is set to “USE.”
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

Battery Specifications:

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Short Circuit Protection yes
Power-on Reverse Connection Protection optional
Local Parameter Configuration support
Max Installation Dimension (mm) 480*170*500
Battery Size 59.4 x 51.8 x 28.2 cm
Weight (kg) 36
IP Class IP 54
Communication RS485, RS232, CAN
Design Life 15 years

Package Includes:
1x Hybrid Inverter 48v 5.5 Kva 5500w Mppt 100a Inverter Pure Sine Wave – Ecco Version (5 Years Repair Warranty)

1x Ecco 51.2v 100ah 5.12kWh Lithium Battery W51100 Wall-Mounted (5 Years Warranty)

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
