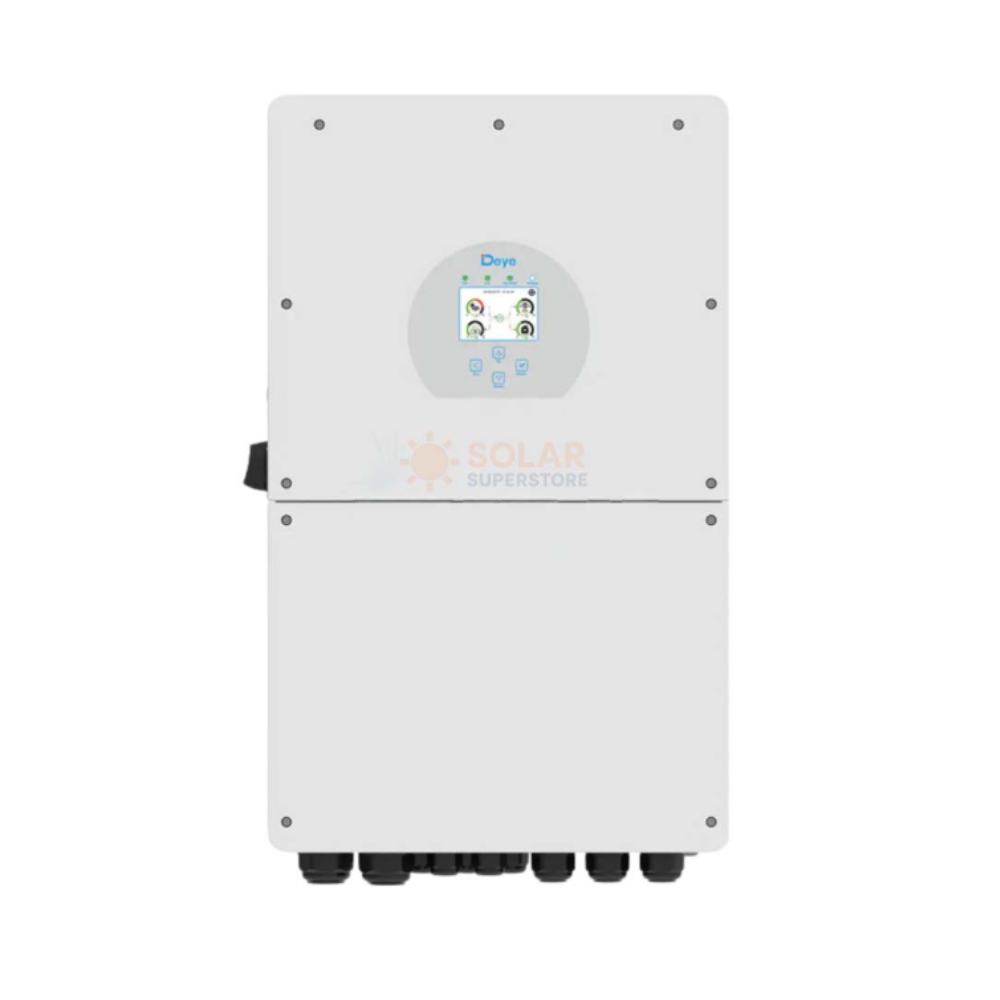

Deye 16Kw Single Phase Hybrid Inverter

Description

General Data
• Maximum Efficiency: 97.60%
• MPPT Efficiency: 99.90%
• Supports Paralleling (16 Units)
• Generator Compatible
• Mounting: Wall Mount

Battery Data
• Battery Type: Lead-Acid or Li-Ion
• Battery Voltage Range: 40VDC~60VDC
• Maximum Charging Current: 290A
• Maximum Discharging Current: 290A
• UPS Power: 12000W
• External Temperature Sensor: Yes
• Charging Curve: 3 Stages / Equalization
• Charging Strategy for Li-Ion Battery: Self adaption to BMS

PV String Input Data
• Maximum DC Input Power: 20800W
• Maximum DC Input Voltage: 500VDC
• Startup Voltage: 125VDC
• MPPT Voltage Range: 150VDC-425VDC
• Rated DC Input Voltage: 370VDC
• PV Input Current: 26A + 26A + 26A
• Maximum PV (Isc): 44A + 44A + 44A
• No of MPP Trackers: 3
• Strings per MPP Tracker: 2

AC Output Data
• Rated AC Output Power: 16000W
• AC Output Rated Current: 69.6A
• Maximum Continuous AC Passthrough: 100A
• Peak Power (Off Grid): 2 time of rated Power, 5 S
• Power Factor: 0.8 Leading to 0.8 Lagging
• Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
• Grid Type: Single Phase

Environment Limit
• Operating Temperature Range: -45°C to 60°C
• Cooling: Smart Cooling (<30 dB)
• Communication: RS485 / CAN
• Ingress Protection: IP65
• Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
